广州市中凯包装专用设备有限公司

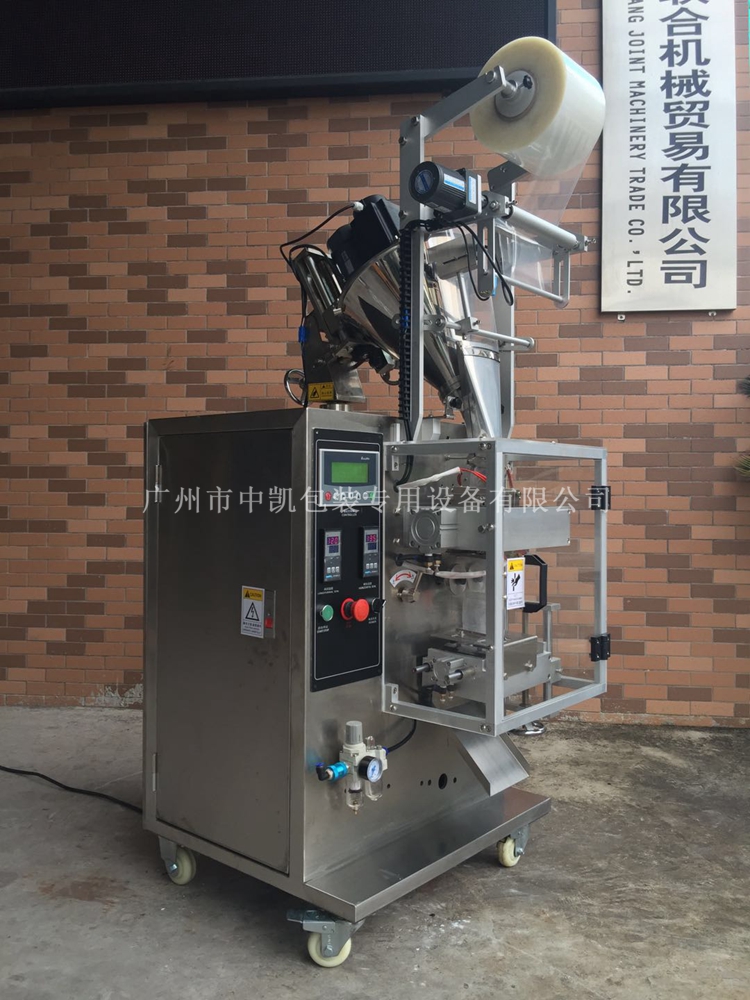

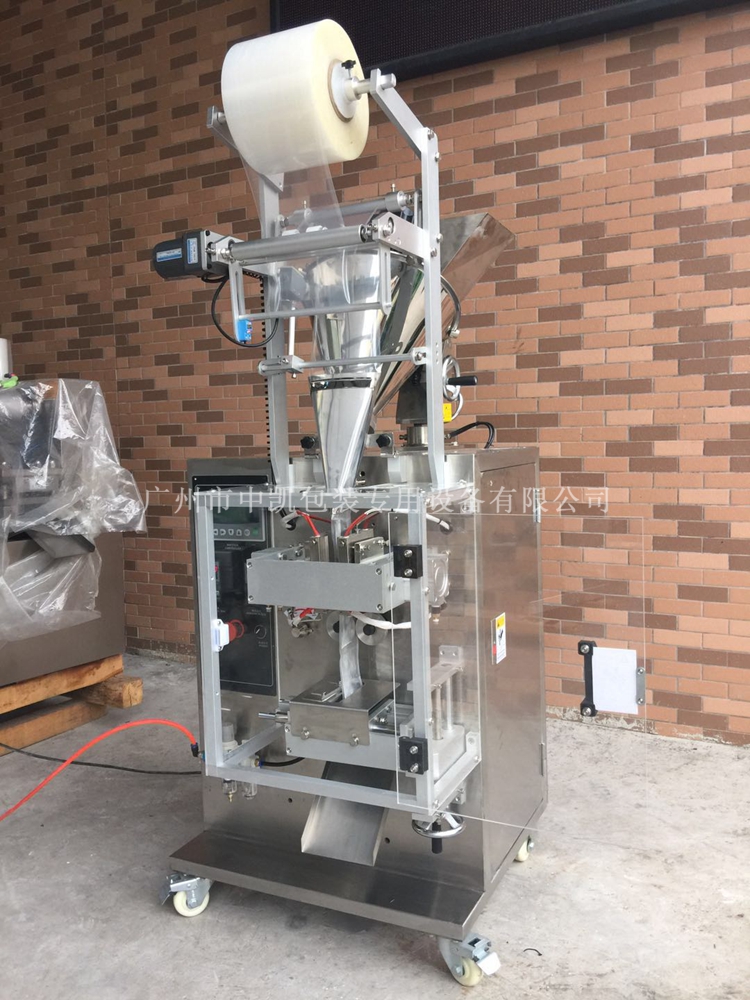

 ZK-60FBY （全自动背封粉剂包装机）

 ZK-60FBY (Full-Automatic Back Seal Powder Packing Machine)

一、适用范围：

适用于食品、日化、化工、农业产品中的120-400目的的粉末物料的全自动包装；如：食品添加剂、奶粉、豆粉、艾草粉、面膜粉、保健茶粉等。

Scope of application:

This machine is widely applied for food , pharmacy eutical , and chemical products in mesh size range from 120 to 400 , such as milk powder , soya powder , cosmetic powder , slimming tea , medical powder and so on .

二、本机特点：

1、自动包装机可以在包装过程中自动完成计量、制袋、充填、封口、切断、计数、批          号等全部工作；

2、控制系统则自动化匹配各动作配合，改系统具有精准确度高，调整制袋长度简便，且准确无误；

3、具有色标控制系统，可获得完整的商标图案；

4、无级调整速度与袋长，包装速度与制袋长度可在额定范围内无级调整，不需要更换零件；

5、设计采用独特的嵌入式封口，加强型热封机构，智能型温控仪温度控制，具有良好的热平衡适应各种的包装材料，性能好、噪音低、封口纹路清晰、密封性强；

6、设备计量下料方式为定做螺杆计量、下料；

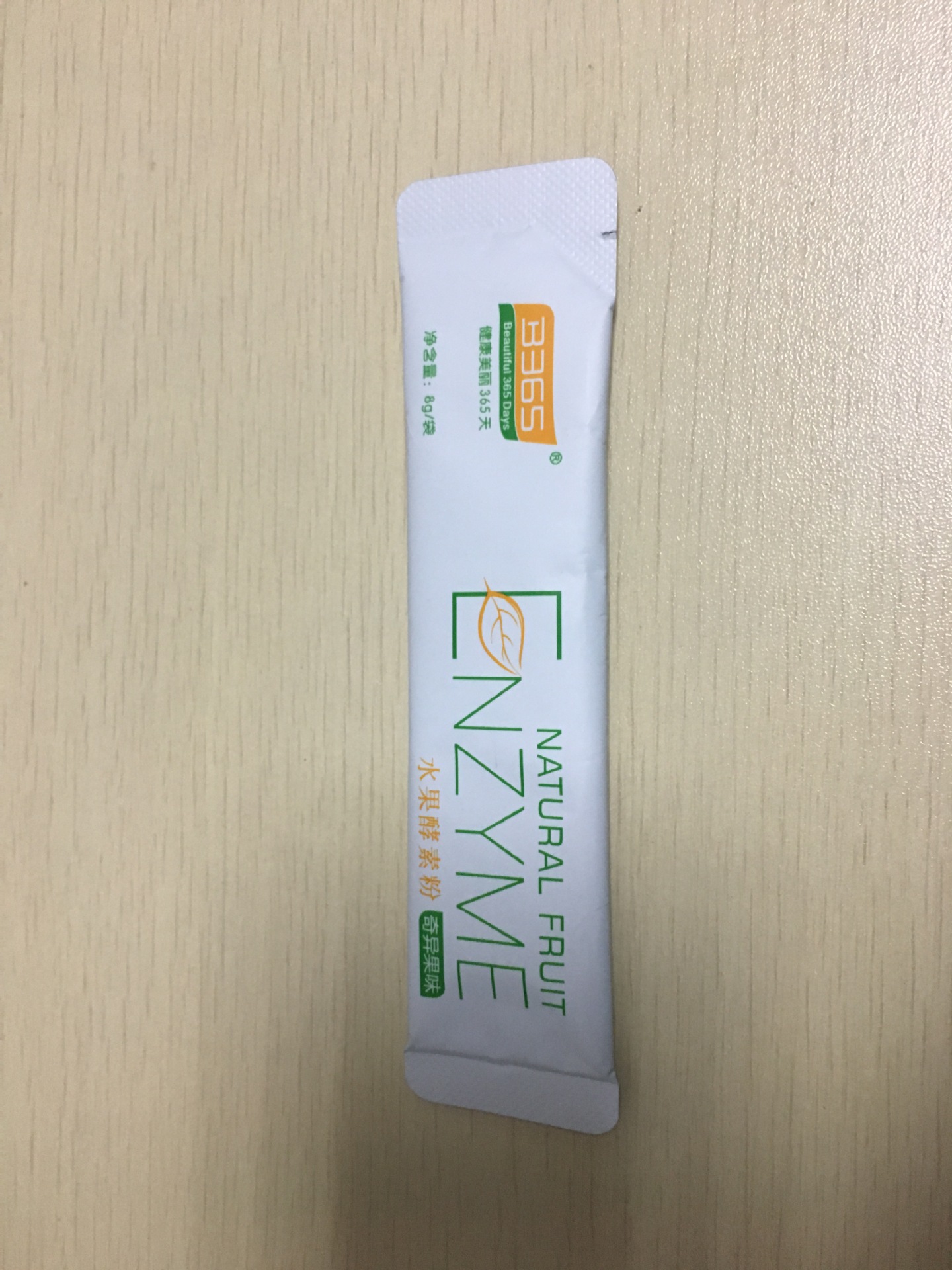

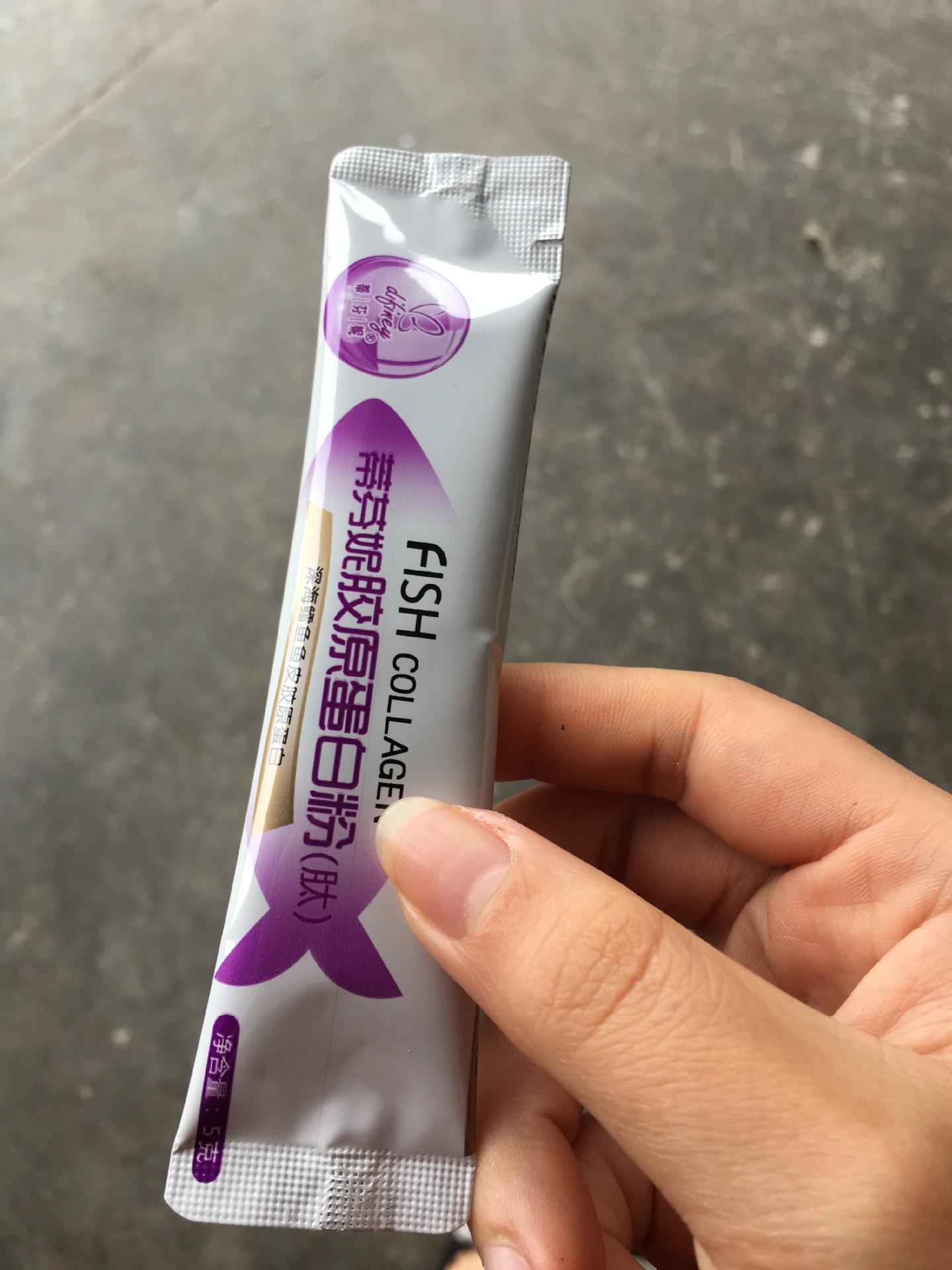

7、设备封口形式为背封锯齿封口；

8、设备主体部分和与物料接触部分材料为不锈钢;

Main features:

1.      Automatic finish weight , bag-making , filling , sealing , cutting ,   counting , lot number and so on ;

2.      Automatic optimization match with all the program , this system can  alternate the length of bag , thus it is easy and precise ;

3.      It has color system controller , so can get the complete trade mark design ;

4.      The length of bag and bag packing speed can be alternated by chain-gear step speed varieties without changing spare parts ;

5.      Unique-laidembedded mouth sealing , enhanced hot sealing mechanism , intelligent temperature control by temperature controller , featuring fine heat balance , fine packaging , performance , low noise , clear sealing texture and strong sealing performance ;

6.      The machine use screw to measure ;

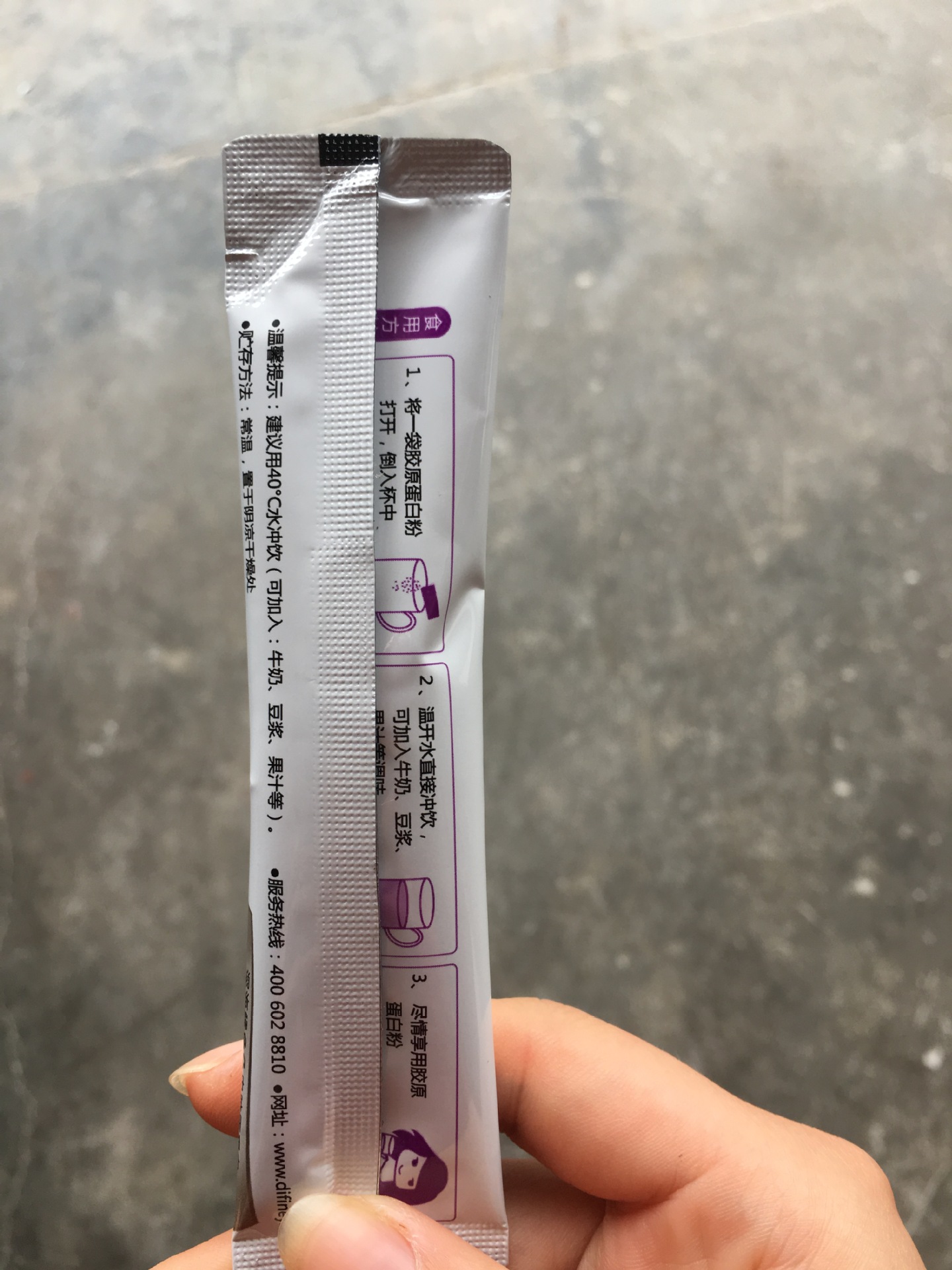

7.      The sealing mold of this machine is back seal .

8.      The material of main parts and contacted material of the machine is stainless .

9.      Control system  is Mitsubishi PLC from Japan .

三、技术参数/Technique Performance：

四、全自动特点：

◆无极调速：包装速度在一定范围内可以无级调整，达到与制袋、充填、封合、切断环节 匹配，使包装过程稳定可靠。

◆袋长可在额定范围内任意设定，步进电机驱动，拉袋稳定可靠，速度可选定。

◆在包装膜有色标定位标志时，制袋过程可实现光电自动检测、定位、封合、切断，保证了制袋图案完整。

◆具有自诊断、故障提示功能。

◆温度控制用高精度的PID调节，具有极好的热封合稳定性，保证了对不同材料的封合质量。

◆操作维修方便：间歇式结构简单，易于操作和维修。

◆通用性强：通过更换不同的充填头便可达到一机多用的目的。

◆自动打印产品批号，可加易撕口，便于使用。

◆全套采用优质器件，质量稳定，噪音小，故障率低，使用寿命长。

u 本机小巧独特，外形美观，所有与物料接触的器件均由不锈钢和无毒耐腐塑料制成，符合食品和医药包装的要求（即GMP要求）。特别适用于食品、医药及化工等行业。

The features of full-automatic：

u Speed Limitless: Packing speed shall be limitless arranged in some extend , which can best match the steps of making bag/fulfilling/sealing and cutting .

u The bag length can be set free at some specific range , using the “Bujin” Motor , making bags stable and the speed can be controlled .

u The process of bag-made can reach self-automatic inspecting/location/sealing and cutting when there are the signs of color locating in packing films .

u Equipment itself has the function of self-diagnosing and error-pointing .

u Controlling temperature by high exact PID , which ensure the sealing quality of different packing film material and will be in more stable of hot sealing .

u Conveniently operate and repair , because of its intermittent simple structure .

u Common using available ：Packing 1-100g in a bag by changing the measure glass .

u Automatically print production lot No. , and adding the easy-tear type convenient .

u Using the superior steel parts , quality to be stable , noise to be bitter , error rate to be low and service life to be long .

Good appearance , smart and unique , the steel of contacting material is stainless steel or poisonousless and corrosion resistance plastic , which reaches the packing requirement of food and medicine ( say GMP ) , especially available in the industries  of food , medicine .
